Key Advantages

/ 01

Wide range of application

Can handle a variety of basic materials, suitable for packaging bags of various specifications and materials, toxic, flammable, highly corrosive, high dust and other working conditions that are unsafe for human contact.

/ 02

High unpacking efficiency

Unpacking speed can reach 50-120 bags/h.

/ 03

Safe and environmentally friendly

Closed unpacking mode, centralized dust collection and treatment.

/ 04

Easy to maintain

Modular combination, simple mechanical structure, no dead angle design.

/ 05

Fully automated operation

Small footprint, unmanned continuous production.





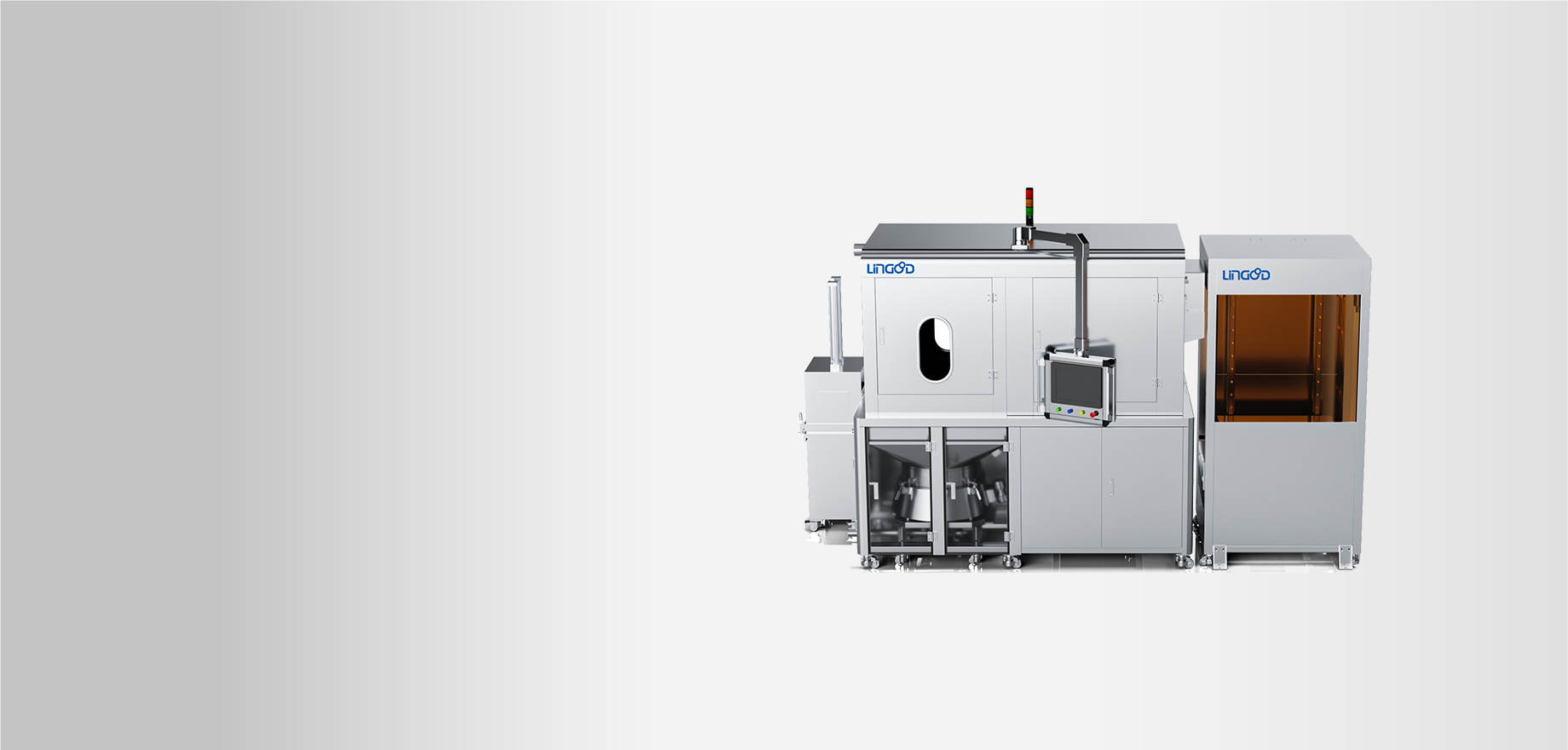

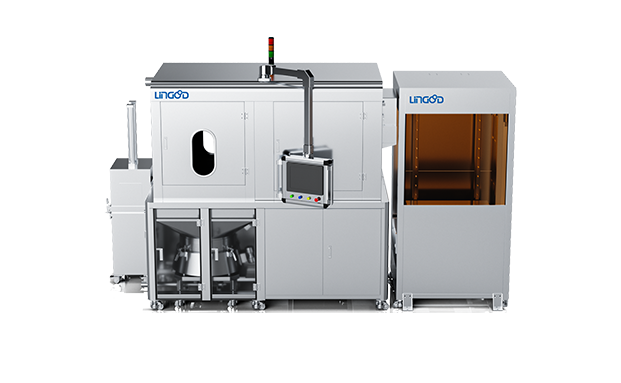

Small bag loading and unpacking system

Items	Parameters
Unpacking capacity (bag/hour)	50~120
Bag weight(KG)	15~25
Bag type	PE bag, leather bag, woven bag
Bag Cutting	5 vertical openings, 1 horizontal opening
Dimensions (L x W x H mm)	3127×1630×2455
Weight (kg)	1500 (host capacity)
Dismantle efficacy	99.99%
Power consumption	4kw
Control	PLC control unit + MES system
Dust removal	Central dust collection
Supply voltage requirements	Machine 380 V / 50 Hz, Control: 220 V / 50 Hz
Compressed air requirments	0.2 m³/min, dry and water-free
Environmental requirements	Ambient temperature: 0-30℃, relative humidity: no condensation
