Product Introduction

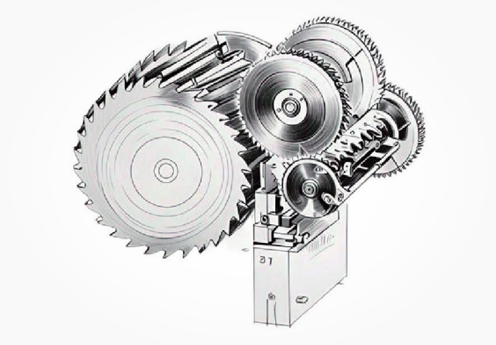

Special cutter body material, processing technology and high wear resistance technology



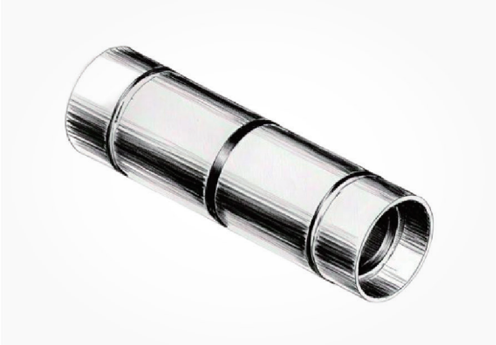

Super rubber roller technology



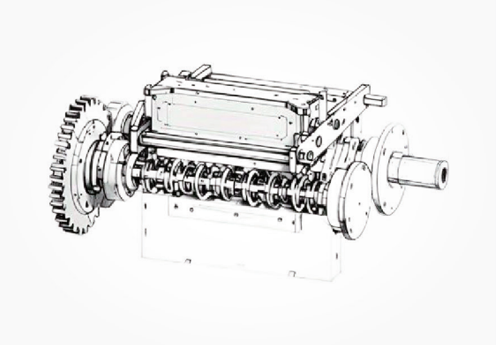

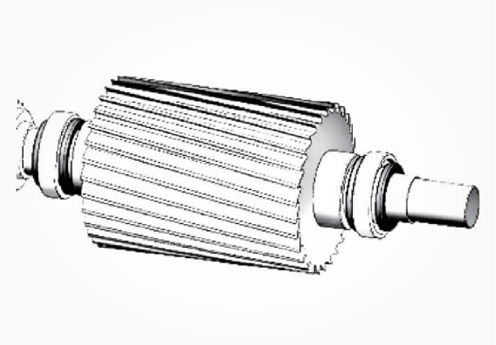

The three-axis transmission system of hob, rubber roller and traction shaft with the adjustment technology of cutter gap



Modular design technology and compact structure



Key Advantages

/ 01

High output

Pelletizing cutter width GR300, output ≥1.5T/h.

/ 02

High flexibility

The fixed knife can be easily adjusted, and the service life expectancy is increased by ≥50%

/ 03

High strength

The materials of the hob and fixed knife are optional, and the rubber roller is standardly equipped with super rubber, which has excellent high temperature resistance and wear resistance.

/ 04

HVAC CAD

The electrical system is integrated with the main engine and the installation and adjustment test is completed before leaving the factory.





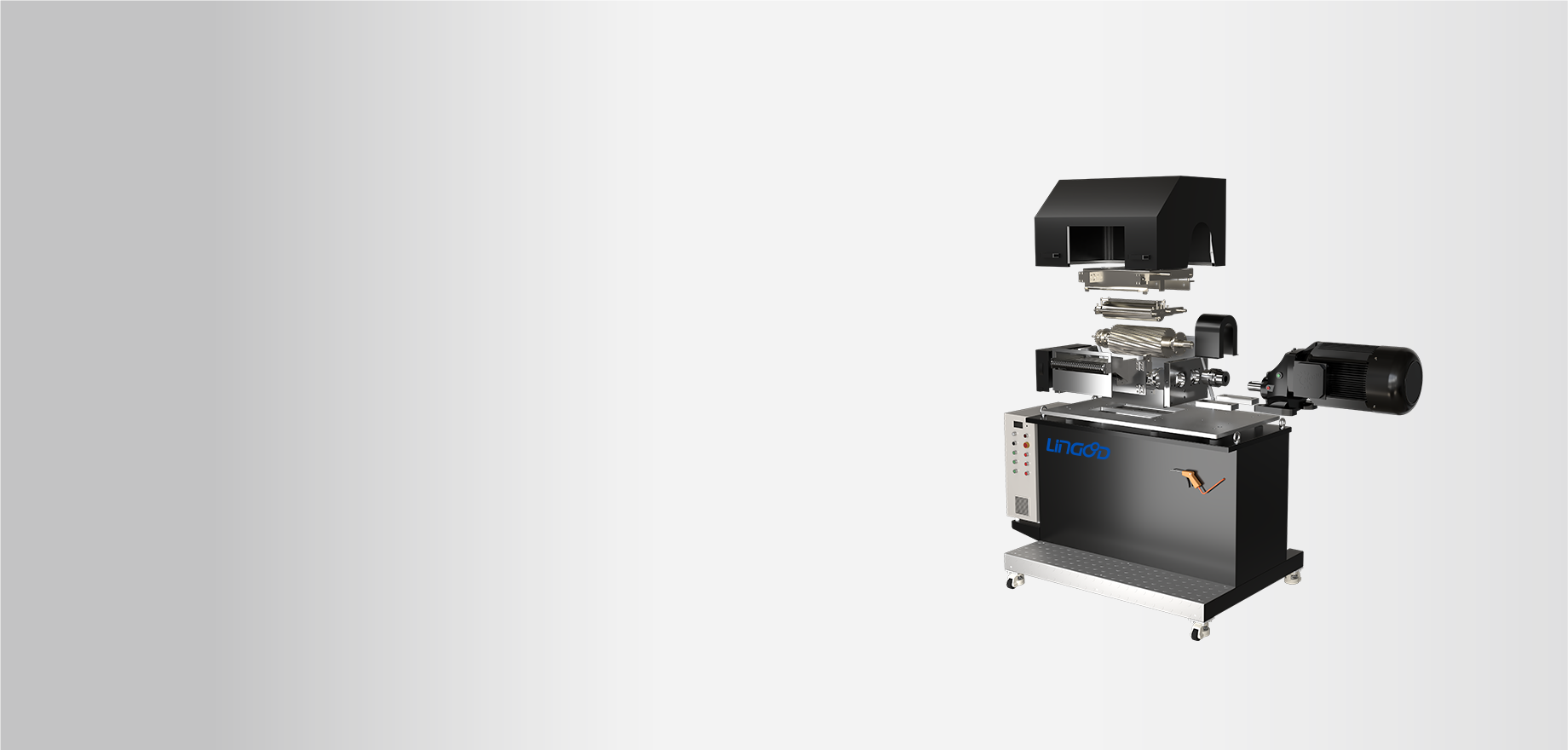

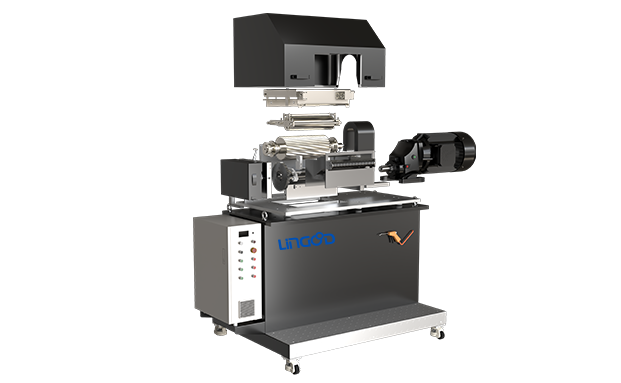

Gantry pelletizer

Items	Parameters
Product Model	GR125	GR240	GR300	GR400
Cutter(mm)	Φ180×125	Φ180×240	Φ180×300	Φ180×400
Feeding speed (m/min)	89	89	89	89
Drive power(kw)	5.5/7.5	7.5/11/15	15/18.5	22
Maximum feed quantity (pcs) (pieces)	＜20	＜40	＜60	＜80
Particle size (mm)	Standard φ3x3	Standard φ3x3	Standard φ3x3	Standard φ3x3
Cutter material	High-speed Steel/Hard Alloy (Carbide)	High-speed Steel/Hard Alloy (Carbide)	High-speed Steel/Hard Alloy (Carbide)	High-speed Steel/Hard Alloy (Carbide)
Equipment weight (kg)	490	586	620	890
